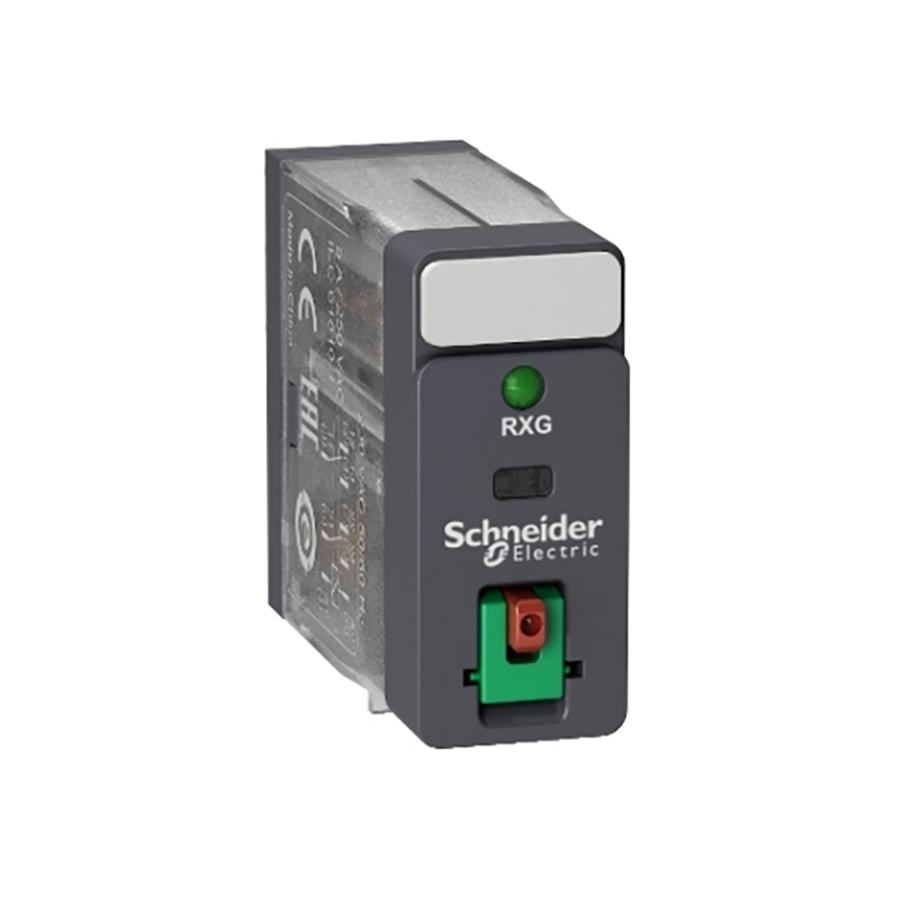

RXG22E7
Manufacturer:
Schneider Electric
Mfr.Part #:
RXG22E7
Datasheet:
Description:
Power Relays Socketable General Purpose
| Parameter | Value |
|---|---|
| Length | 29 mm |
| Width | 13 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Height | 36.5 mm |
| Packaging | Box |
| RoHS | Compliant |
| Features | Lighted Indicator, Test Button |
| Contact Material(Contact Finish) | Silver Alloy |
| Coil Type | Non-Latching |
| Relay Type | General Purpose |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Contact Current Rating | 5 A |
| Termination Style | Plug In |
| Switching Voltage | 250 VAC, 30 VDC |
| Coil Voltage (AC) | 48 V |
| Must Operate Voltage | 38.4 V |
| Must Release Voltage | 14.4 V |
Stock: 19
Distributors
pcbx
pcbxUnit Price$9.36832
Ext.Price$9.36832
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $9.36832 | $9.36832 |
| 10 | $8.34240 | $83.42400 |
| 25 | $7.81219 | $195.30475 |
| 50 | $7.31563 | $365.78150 |
| 100 | $7.14037 | $714.03700 |
| 300 | $6.98523 | $2095.56900 |
| 500 | $6.83345 | $3416.72500 |
| 1000 | $6.80267 | $6802.67000 |
